Mixer Ribbon Replacement
Icon removed the end plate of a feed mixer to replace its 8' diameter ribbons weighing over 20,000 lbs. each. Replacing the ribbons included installing new bearings, seals and re-aligning the low and high speed couplings. Icon personnel worked around the clock shifts to complete this during a 5 day shutdown.

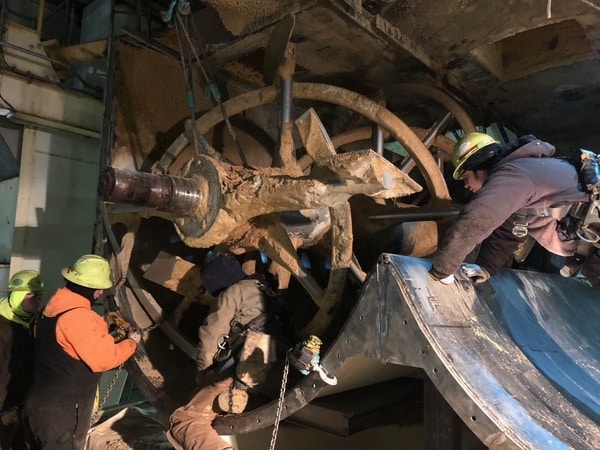

![Rigging Left Ribbon Rigging Left Ribbon](/application/files/6515/2061/6882/Mixer_1.jpg)
![Right Ribbon Compartment Right Ribbon Compartment](/application/files/1615/2061/6885/Mixer_2.jpg)

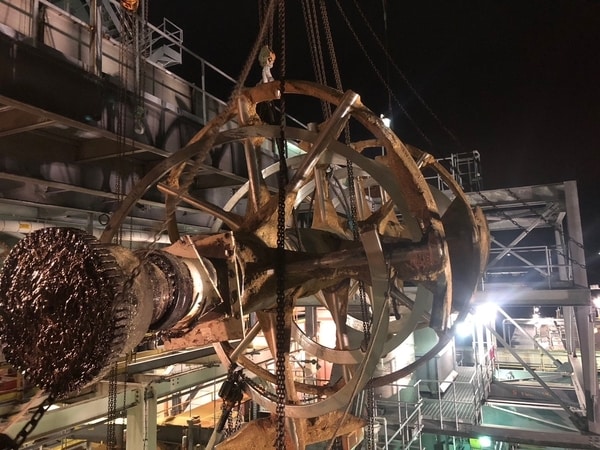

![Sliding Ribbon Out Of The Tub Sliding Ribbon Out Of The Tub](/application/files/6815/2061/6892/Mixer_6.jpg)

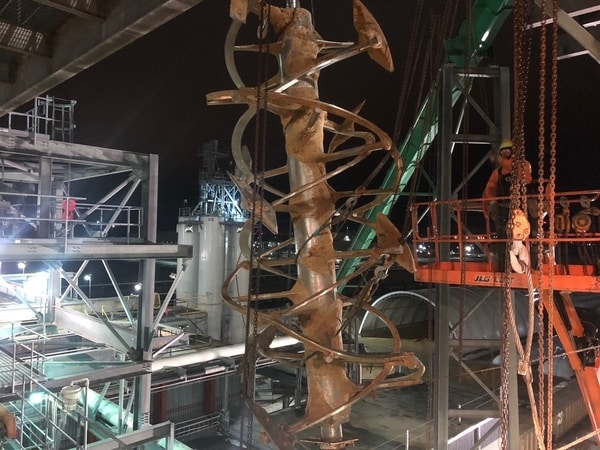

![Tilting Ribbon To Lower To Grade Tilting Ribbon To Lower To Grade](/application/files/9615/2061/6898/Mixer_9.jpg)

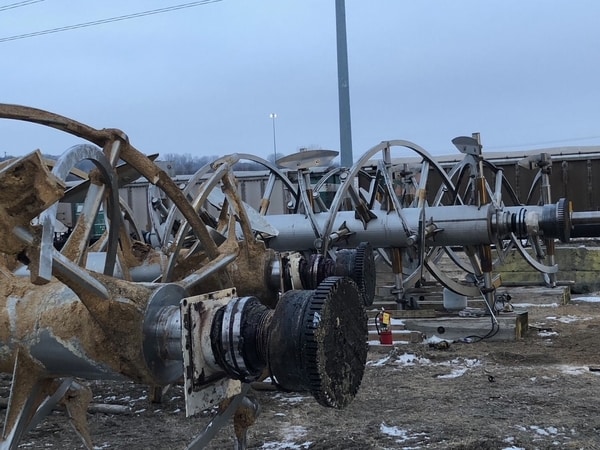

![Old and New Ribbons In Laydown Yard Old and New Ribbons In Laydown Yard](/application/files/4215/2061/6900/Mixer_11.jpg)
![Lowering New Ribbon Into Position Lowering New Ribbon Into Position](/application/files/9615/2163/9632/Mixer_13.jpg)

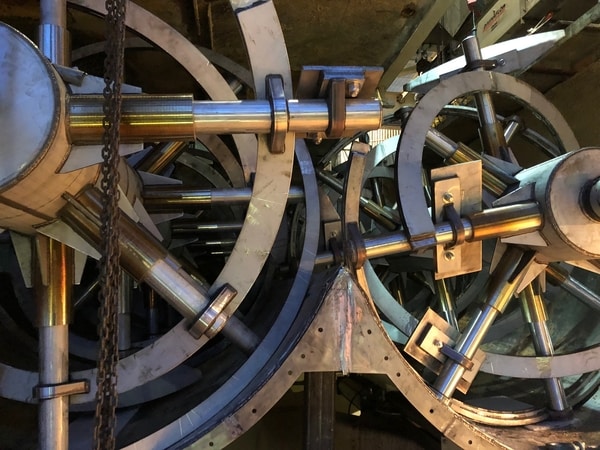

![Sliding New Ribbon Into Place Sliding New Ribbon Into Place](/application/files/4815/2163/9637/Mixer_14.jpg)
![New Ribbons Installed in Feed Mixer New Ribbons Installed in Feed Mixer](/application/files/7715/2061/6884/Mixer_12.jpg)
